Remote Control MCB 4G-T40-3P 🔍
×

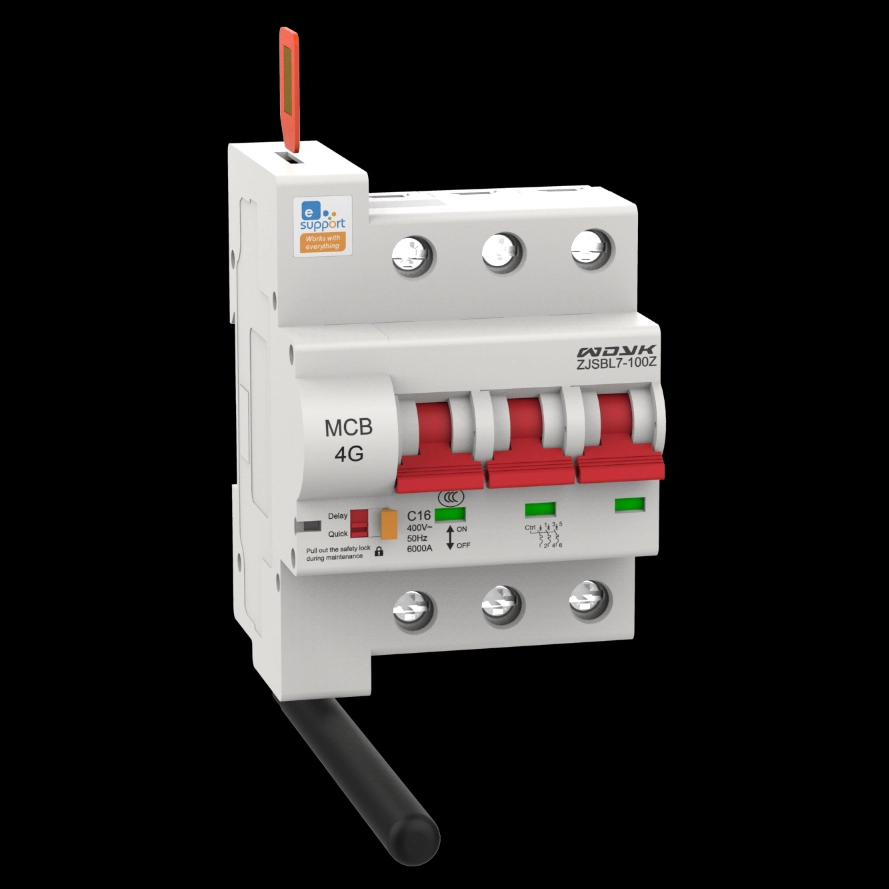

Remote Control MCB 4G-T40-3P

WDYK Remote Control MCB 4G communication,a new type of electrical protection device that integrates microprocessors, sensors, and 4G communication modules into traditional circuit breakers. It not only performs conventional protection functions such as overload, short circuit, but also uploads operational status, current and voltage parameters, fault information, and other data in real time to a cloud platform via 4G networks, achieving “device online, status visible, and operation controllable.”

Prodcut Specification

  • Current:6-125A
  • Voltage:1P 2P 220V230V,3P 4P 380/400V
  • Frequency:50/60Hz
  • WIFI:2.4GHz WIFI
  • Breaking Capacity:6KA
  • Warranty:18 Months
Ask Quote Now 📧
Category: Smart Circuit Breaker
What are the wiring requirements for the power terminal and 4G antenna of a 4G general circuit breaker?

Component
Key Wiring Requirements
Precautions
Power Terminals​
1. Voltage Matching: Ensure the circuit breaker’s operating voltage (e.g., AC 220V or 380V) matches the supply network.
2. Identify Line and Neutral Wires: For single-phase circuits, strictly distinguish between the line (L) and neutral (N) wires. Terminals are usually marked (e.g., “N” for neutral).
3. Wire Specifications: Use copper wires of appropriate gauge and ensure they are securely tightened.
Always disconnect power​ before working to prevent electric shock.
4G Antenna​
1. Interface Connection: Firmly screw the SMA connector of the 4G antenna into the port labeled “4G” or “ANT” on the circuit breaker.
2. Installation Location: The antenna should be kept away from metal obstructions​ and placed as close as possible to a window or outdoor area with good signal reception.
3. Orientation and Fixing: Ensure the antenna is oriented vertically upward​ and properly secured using a magnetic base or bracket.
Avoid excessive bending of the antenna cable and prevent water ingress at the connector.
